Cordova

What is the RudderStack Cordova SDK?

Apache Cordova is an open-source, cross-platform application development framework. The RudderStack Cordova SDK lets you track event data from your Cordova app and send it to your preferred destination platforms via RudderStack.

Refer to the GitHub repository to access the SDK's codebase and the sample implementation.

SDK setup requirements

To set up the Cordova SDK, follow these steps:

Sign up and log into your RudderStack account.

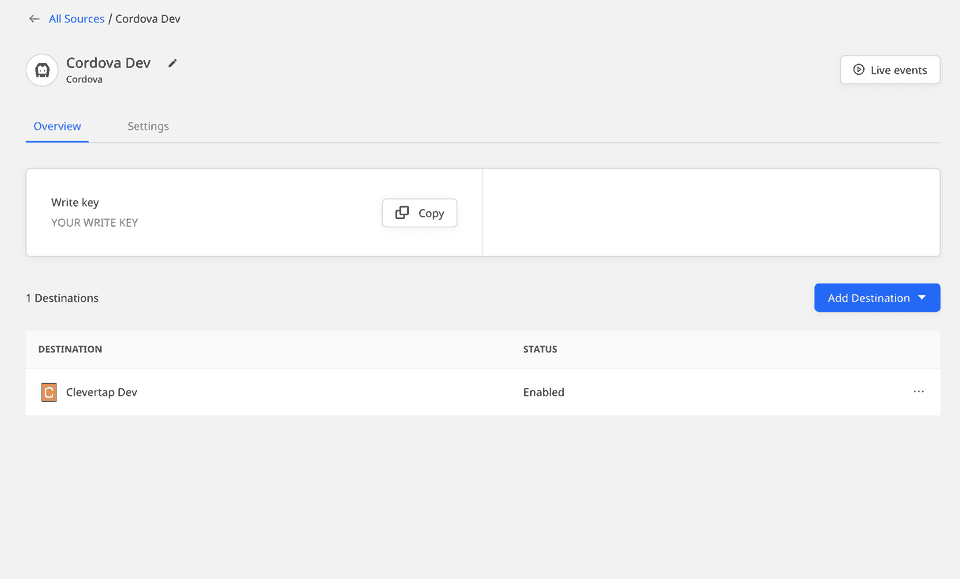

Add a new Cordova source and note the source write key, as shown:

Adding Cordova SDK

You will also need your data plane URL. Follow this section for more information.

Installing the SDK

To add the Cordova SDK as a dependency, navigate to the root folder of your application and run the following command:

cordova plugin add rudder-sdk-cordova

Initializing the RudderStack client

After adding the SDK as a dependency, you need to set up the SDK. Add the following code in the onDeviceReady() function of your home page to initialize the SDK.

A sample Cordova SDK initialization is as shown:

RudderClient.initialize(WRITE_KEY , {
  dataPlaneUrl: DATA_PLANE_URL
})

Make sure to use the await keyword with the initialize call.

The setup method has the following signature:

Name	Data Type	Presence	Description
`writeKey`	`string`	Required	Your Cordova source `writeKey` from the dashboard.
`configuration`	`JSON Object`	Optional	Contains the RudderStack client configuration.
`options`	`JSON Object`	Optional	Extra options to be pass along with the event.

Check the Configuring your RudderStack Client section below for detailed information on the parameters you can send in the configuration object.
Check the Configuring your options object section below for detailed information on the parameters you can send in the options object.

Identify

The identify call lets you identify a visiting user and associate them with their actions. It also lets you record the traits about them like their name, email address, etc.

For more information on the identify call and the supported fields, refer to the RudderStack Events Specification guide.

As a best practice, we recommend calling identify at the start of every session or page load for logged-in users. This will ensure all their latest traits are captured in all the subsequent events.

A sample identify call is as shown below:

RudderClient.identify("userId", {
  address: {
    city: "Hyderabad",
    country: "India",
    state: "Telangana",
  },
  birthday: "1984/07/17",
  company: {
    name: "RudderStack",
    id: "RS",
    industry: "IT",
  },
  email: "john@rudderstack.com",
  firstName: "john",
});

The identify method has the following signatures:

Name	Data Type	Presence	Description
`userId`	`string`	Required	User identifier in your database.
`traits`	`JSON Object`	Optional	Information related to the user traits.
`options`	`JSON Object`	Optional	Extra options for the `identify` event.

For more information on the behavior of the options property, refer to the Configuring your options object section below.

Track

The track call lets you record the customer events, i.e. the actions that they perform, along with any properties associated with the action.

Each user action is called an event. Every event has a name associated with it, e.g. Product Reviewed. This event might also have some properties associated with it, like review_id and rating.

For more information on the track call and the supported fields, refer to the RudderStack Events Specification guide.

A sample track event called Order Completed using the Cordova SDK is shown below:

RudderClient.track('Order Completed', {
  checkout_id: '18310159091413-2',
  order_id: '1153390412189-01',
  affiliation: 'Google Play Store',
  total: 68.00,
  subtotal: 60.00,
  revenue: 70.00,
  shipping: 5,
  tax: 3,
  discount: 10,
  coupon: 'NEWUSER',
  currency: 'USD',
  products: [{
      product_id: '853913-410121910',
      sku: 'FF-21',
      name: 'Varsity Graphic T-Shirt',
      price: 25,
      quantity: 1,
      category: 'Clothing',
      url: 'https://www.myntra.com/tshirts/huetrap/huetrap-men-beige/111/buy',
    },
    {
      product_id: '113413-190158920',
      sku: 'GF-67',
      name: 'Printed Round Neck T-Shirt',
      price: 15,
      quantity: 3,
      category: 'Clothing'
    }
  ]
})

The track method has the following signature:

Name	Data Type	Presence	Description
`name`	`String`	Required	Contains the name of the event that you want to track.
`properties`	`JSON Object`	Optional	Contains the extra properties to be sent along with the event.
`options`	`JSON Object`	Optional	Contains the extra event options.

RudderStack automatically tracks the following optional events:

Application Installed
Application Opened

You can disable these events by sending the property trackLifecycleEvents as false within the configuration object while initializing RudderClient. However, we highly recommend keeping them enabled.

Group

The group call lets you link an identified user with a group, such as a company, organization, or an account. It also lets you record any custom traits associated with that group, such as the name of the company, the number of employees, etc.

An identified user can be a part of more than one group.

For more information on the group call and the supported fields, refer to the RudderStack Events Specification guide.

A sample group call is shown below:

RudderClient.group("group1", {
  groupname: "RS",
  groupwork: "Mobile dev"
})

The group method has the following signatures:

Name	Data Type	Presence	Description
`groupId`	`string`	Required	The organization ID with which you want to associate the user.
`groupTraits`	`JSON Object`	Optional	Any other property of the organization that you want to pass along with the call.
`options`	`JSON Object`	Optional	Extra options for the `group` event.

Screen

The screen call lets you record whenever your user views their mobile screen with any additional relevant information about the viewed screen.

For more information on the screen call and the supported fields, refer to the RudderStack Events Specification guide.

A sample screen call is shown below:

RudderClient.screen("Home Screen", {
  mobile: "pixel"
})

The screen method has the following signature:

Name	Data Type	Presence	Description
`screenName`	`string`	Required	Name of the viewed screen.
`property`	`JSON Object`	Optional	Extra properties that you want to pass along with the `screen` call.
`option`	`JSON Object`	Optional	Extra options to be passed along with `screen` event.

Alias

The alias call lets you merge different identities of a known user.

alias is an advanced method that lets you change the tracked user's ID explicitly. This method is useful when managing identities for some of the downstream destinations.

For more information on the alias call, refer to the RudderStack Events Specification guide.

A sample alias call is shown below:

RudderClient.alias("userId")

The alias method has the following signature:

Name	Data Type	Presence	Description
`newId`	`String`	Required	The new `userId` that you want to assign to the user.
`options`	`JSON Object`	Optional	Event level options.

Reset

You can use the reset method to clear the persisted traits from the identify call. We recommend calling it during the Logout operation.

A sample reset call is as shown:

RudderClient.reset()

RudderStack gives the users (e.g., an EU user) the ability to opt out of tracking any user activity until the user gives their consent. You can do this by leveraging RudderStack's optOut API.

The optOut API takes true or false as a Boolean value to enable or disable tracking user activities. This flag persists across the device reboots.

The following snippet highlights the use of the optOut API to disable user tracking:

RudderClient.optOut(true);

Once the user grants their consent, you can enable user tracking once again by using the optOut API with false as a parameter sent to it, as shown:

RudderClient.optOut(false);

The optOut API is available in the Cordova SDK starting from version 1.0.1.

Configuring the RudderStack client

You can configure your RudderStack client by passing the following parameters in the configuration object of your RudderClient.initialize() call:

Parameter	Type	Description	Default Value
`logLevel`	`RudderClient.LogLevel`	Controls how much of the log you want to see from the Cordova SDK.	`RudderClient.LogLevel.None`
`dataPlaneUrl`	`string`	Your RudderStack Data Plane URL.	https://hosted.rudderlabs.com
`flushQueueSize`	`int`	The number of events included in a batch request to the server.	`30`
`dbThresholdCount`	`int`	The number of events to be saved in the `SQLite` database. Once the limit is reached, older events are deleted from the database.	`10000`
`sleepTimeout`	`int`	Minimum waiting time to flush the events to the server.	`10 seconds`
`configRefreshInterval`	`int`	RudderStack fetches the config after this time interval.	`2`
`trackLifecycleEvents`	`boolean`	Determines if the SDK should capture the application life cycle events automatically.	`true`

Configuring your `options` object

The sample format of the options object that can send along with all the above-mentioned API calls is shown in the following snippet:

{
  "externalIds": {
    "brazeExternalId": "externalId1"
  }
}

The options object has the following signature:

Name	Data Type	Presence	Description
`externalIds`	`JSON Object`	Optional	Each key within `externalIds` object should define the type of external ID, and its value should be a `String` or `Integer`.
`integrations`	`JSON Object`	Optional	Each key within the `integrations` object should hold the display name of your desired destination. Its value should be a `boolean` indicating whether you want to send that event or not. For more details check the Enabling/disabling events for specific destinations section below.

Enabling/disabling events for specific destinations

RudderStack lets you send your event data only to the explicitly specified destinations and filtering out the rest. You can do this in one of the following two ways:

While initializing the Cordova SDK
While making any event call

Passing destinations during SDK initialization

This approach is useful when you want to send the events to specific destinations across all the event calls made using the SDK.

A sample SDK initialization is shown below:

RudderClient.initialize("1n0JdVPZTRUIkLXYccrWzZwdGSx", {
  dataPlaneUrl: "https://0ff6-175-101-36-4.ngrok.io",
  flushQueueSize: 30,
  dbCountThreshold: 10000,
  configRefreshInterval: 2,
  logLevel: 0,
  sleepTimeOut: 10,
  trackLifecycleEvents: true,
  recordScreenViews: true,
}, {
  integrations: {
    MixPanel: true,
    Amplitude: true
  }
})

Passing destinations during event calls

This approach is useful when you want to send particular events to specific destinations, or if you want to override the destinations specified during the SDK initialization for a particular event.

An example is shown below:

RudderClient.screen("Home Screen", {
  mobile: "pixel"
}, {
  integrations: {
    All: false,
    Salesforce: true
  }
})

In the above example, the values of the screen call are passed only to the Salesforce destination.

Anonymous ID

We use the deviceId as anonymousId by default. You can use the setAnonymousId method to override the default anonymousId, as shown:

RudderClient.setAnonymousId("CustomAnonymousId");

You need to call setAnonymousId method before calling initialize

Advertisement ID

RudderStack collects the advertisement ID if it is enabled by the user. To set the advertising ID yourself, you can use the setAdvertisingId method as shown:

RudderClient.setAdvertisingId("SampleAdvertisingId")

Setting the device token

You can pass your device-token for push notifications to be passed to the destinations which support the Push Notifications feature. RudderStack sets the token under context.device.token.

An example of setting the device-token is as shown:

RudderClient.putDeviceToken("sampleDeviceToken");

FAQs

Where can I find the source write key?

Once you set up a Cordova source in the RudderStack dashboard, you will be able to view the source Write Key, under the Overview section, as shown:

Where can I find the Data Plane URL?

Refer to this section for more information on the Data Plane URL and how to get it.

Debugging

If you face any unexpected behavior of the SDK, you can turn on the VERBOSE or DEBUG logging to find out what the issue is.

You configure logging behaviour of your SDK by sending the value of logLevel property of the configuration object appropriately as defined [here] and pass it over to the initialize call as shown below:

RudderClient.initialize( WRITE_KEY , {
  dataPlaneUrl: DATA_PLANE_URL ,
  logLevel: RudderClient.LogLevel.VERBOSE,
  trackLifecycleEvents: true
})

Contact us

In case of any queries while setting up or using the Cordova SDK, you can contact us or start a conversation on our Slack channel.
